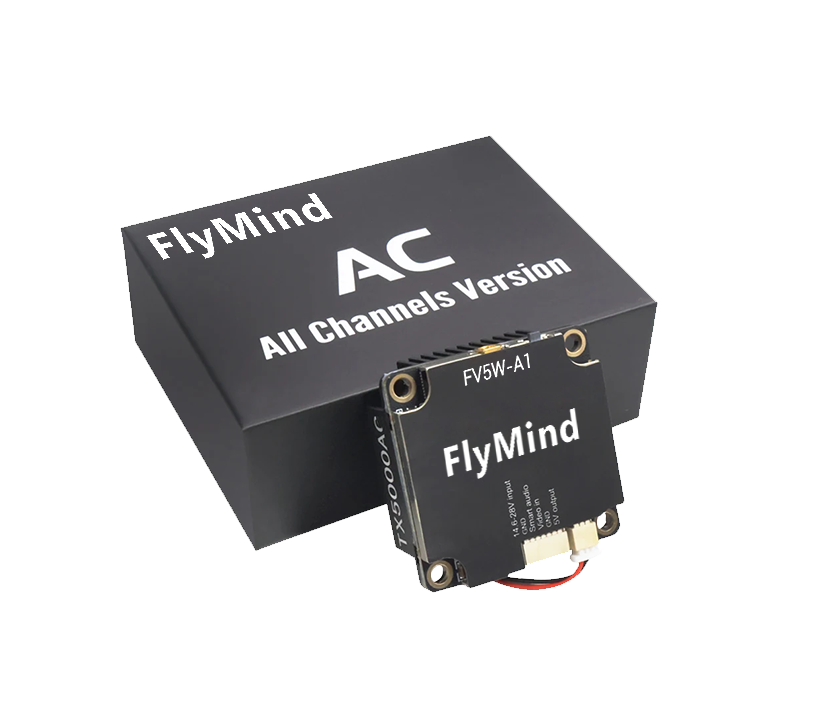

Flymind 2.5W VTX FPV Video Transmitter 5.8G For FPV Drone

Flymind 2.5W VTX FPV Video Transmitter 5.8G For FPV Drone

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar

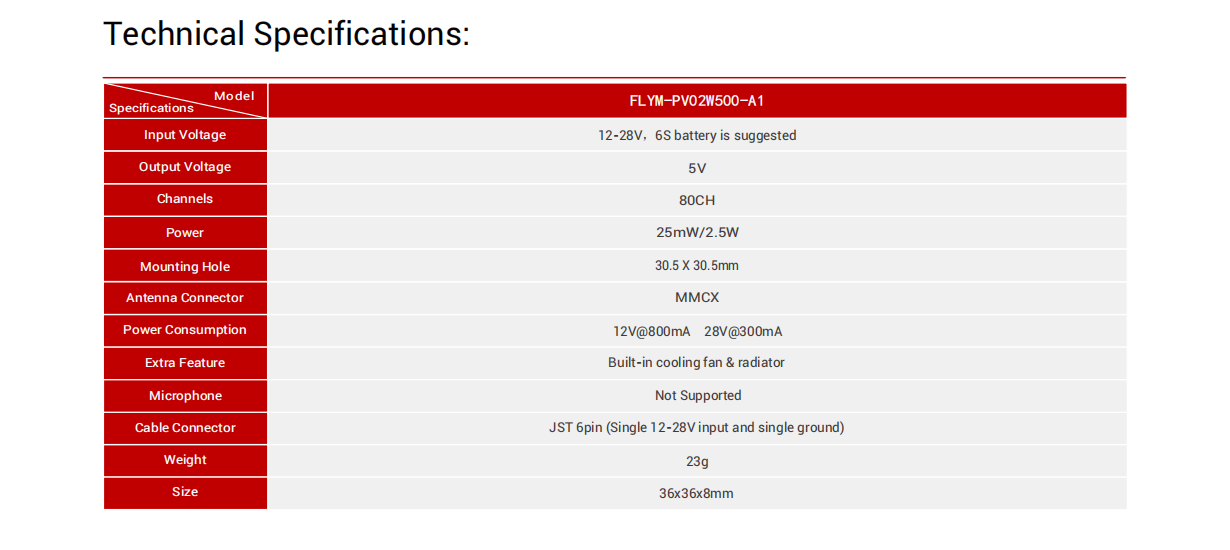

Frequency Range 4.9GHz-6.1GHz
Output Voltage 5V
Antenna Connector MMCX
Input Voltage 12-28V,6S battery is suggested

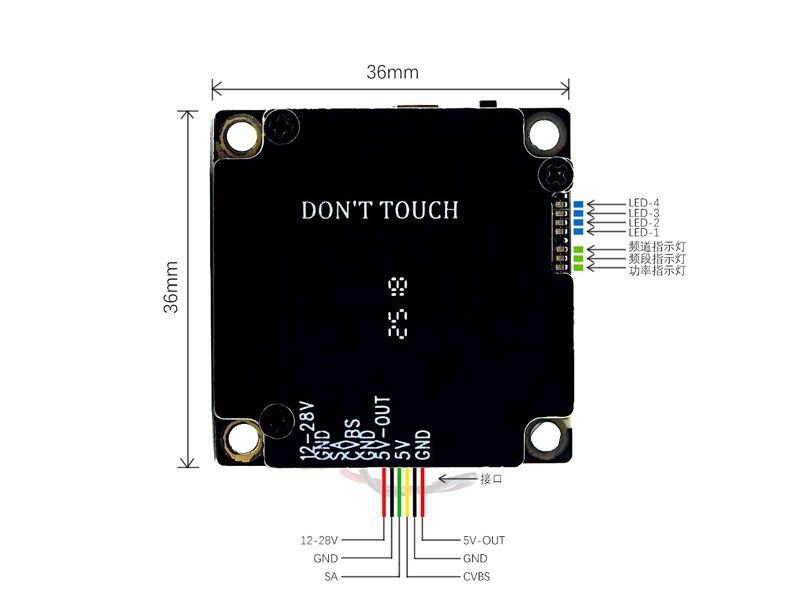

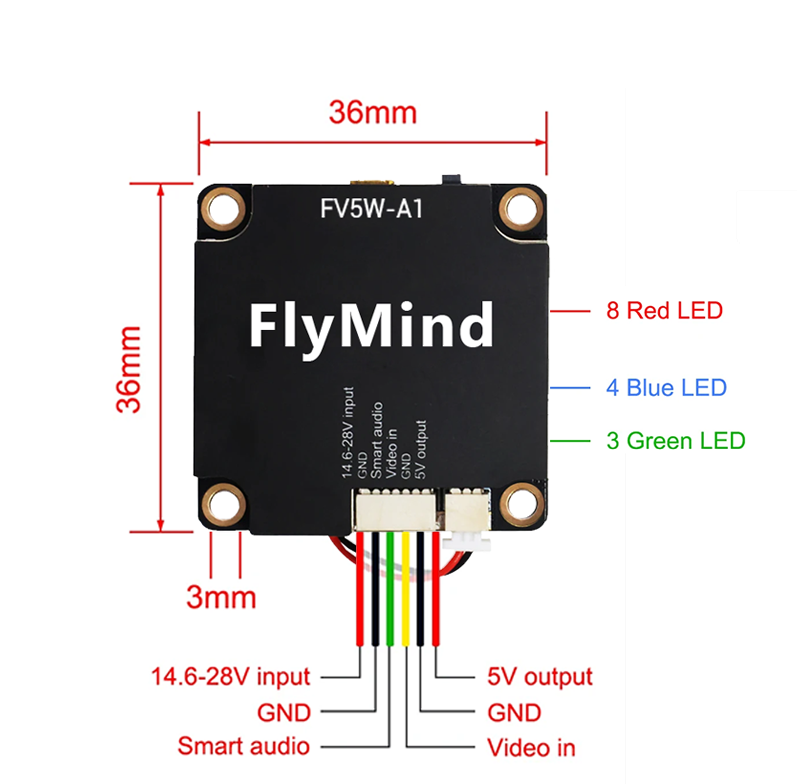

Cable Connector JST 6pin (Single 12-28V input and single ground)

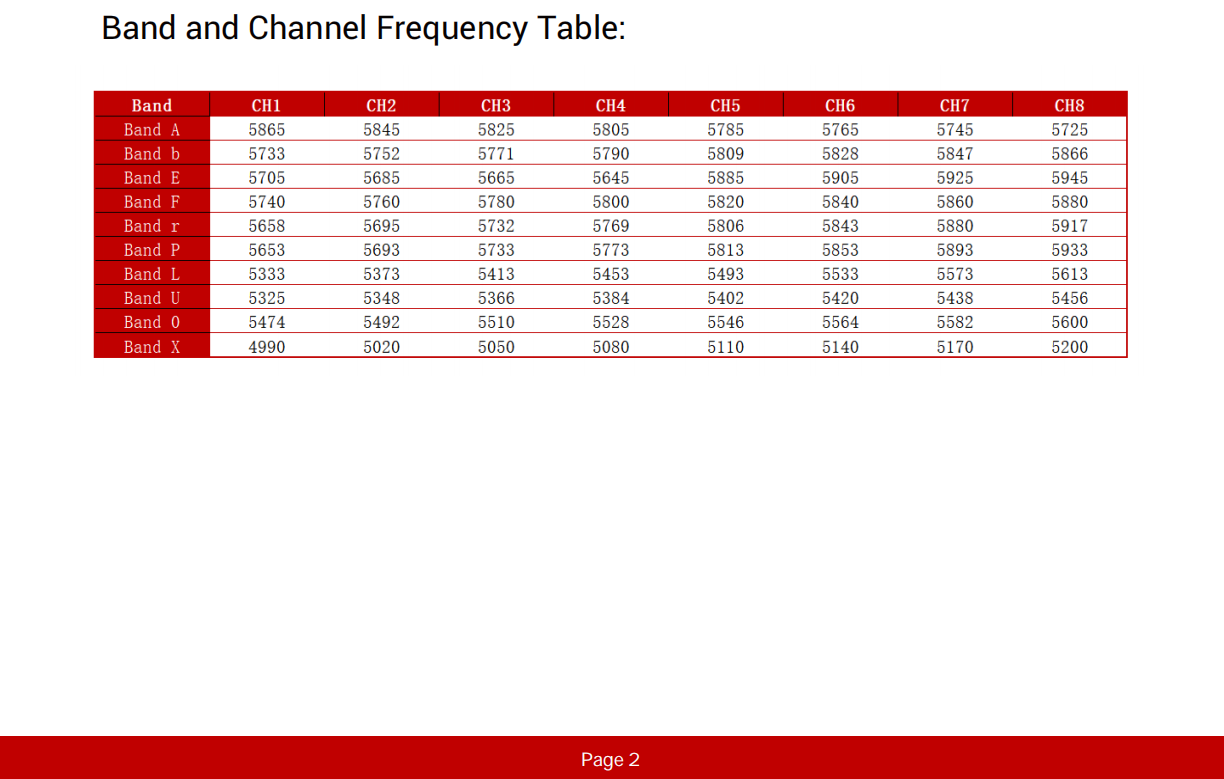

Channels 80ch
Output Power 25mW/2.5W
Power Consumption 12V@800mA 28V@300mA
Mounting Hole 30.5 X 30.5mm
Size 36x36x8mm
Weight 23g
market@flymind.com.cn
Inquire Now
Detail

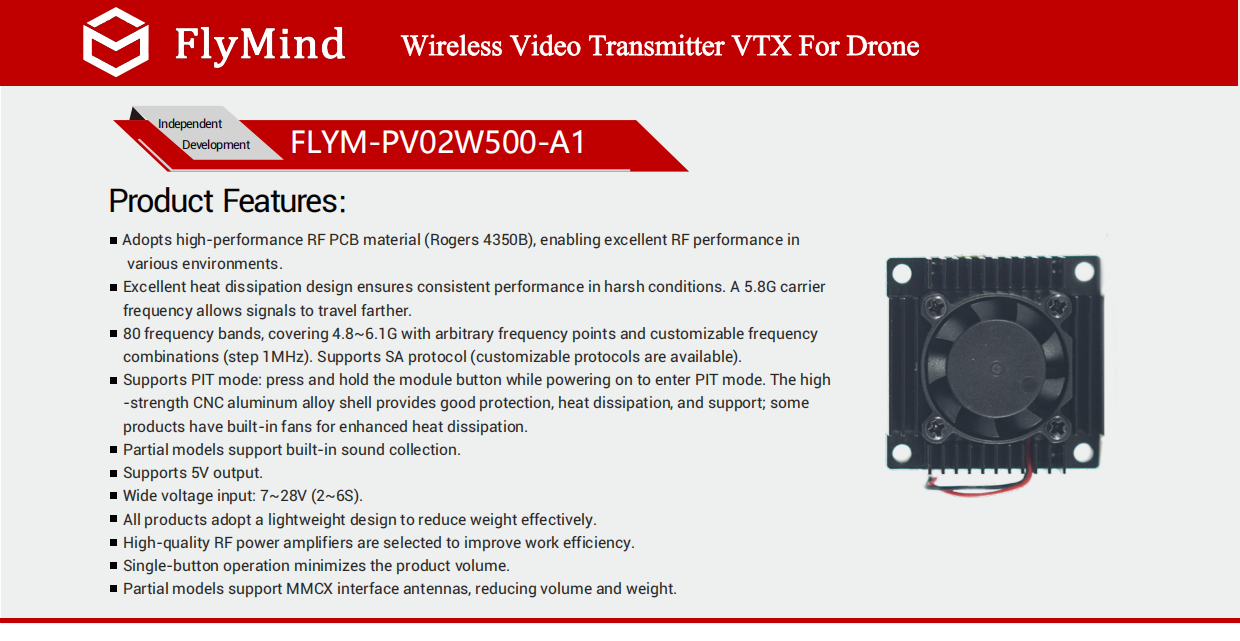

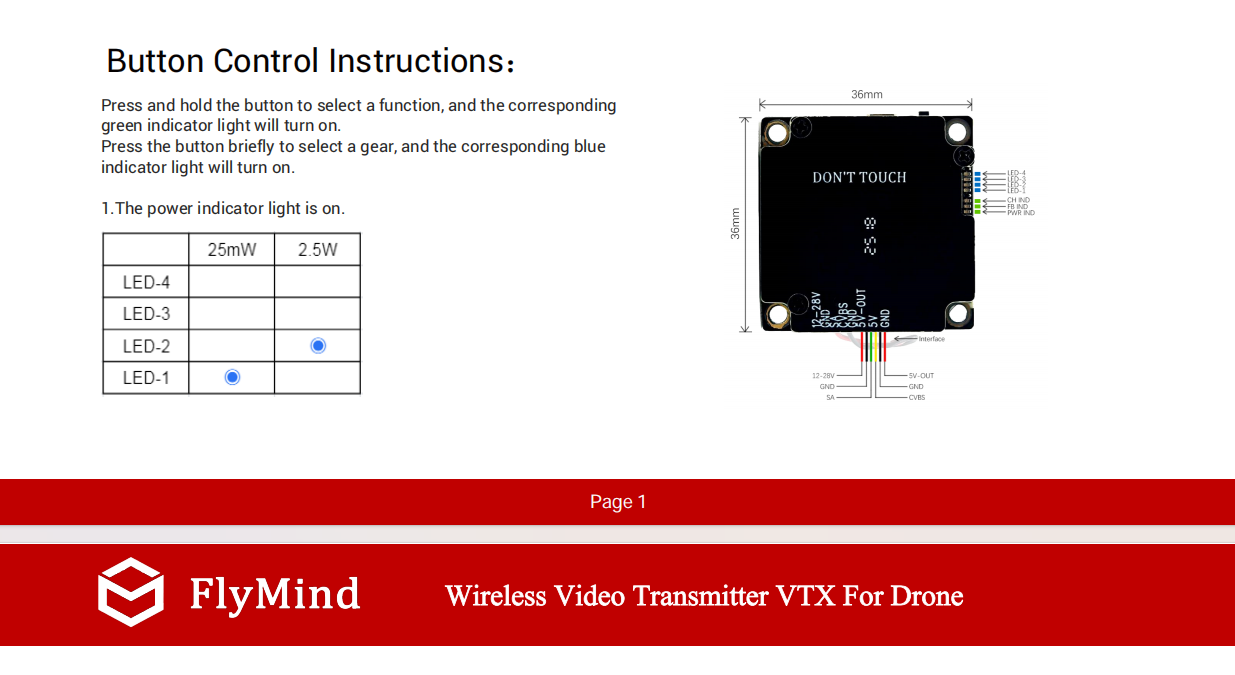

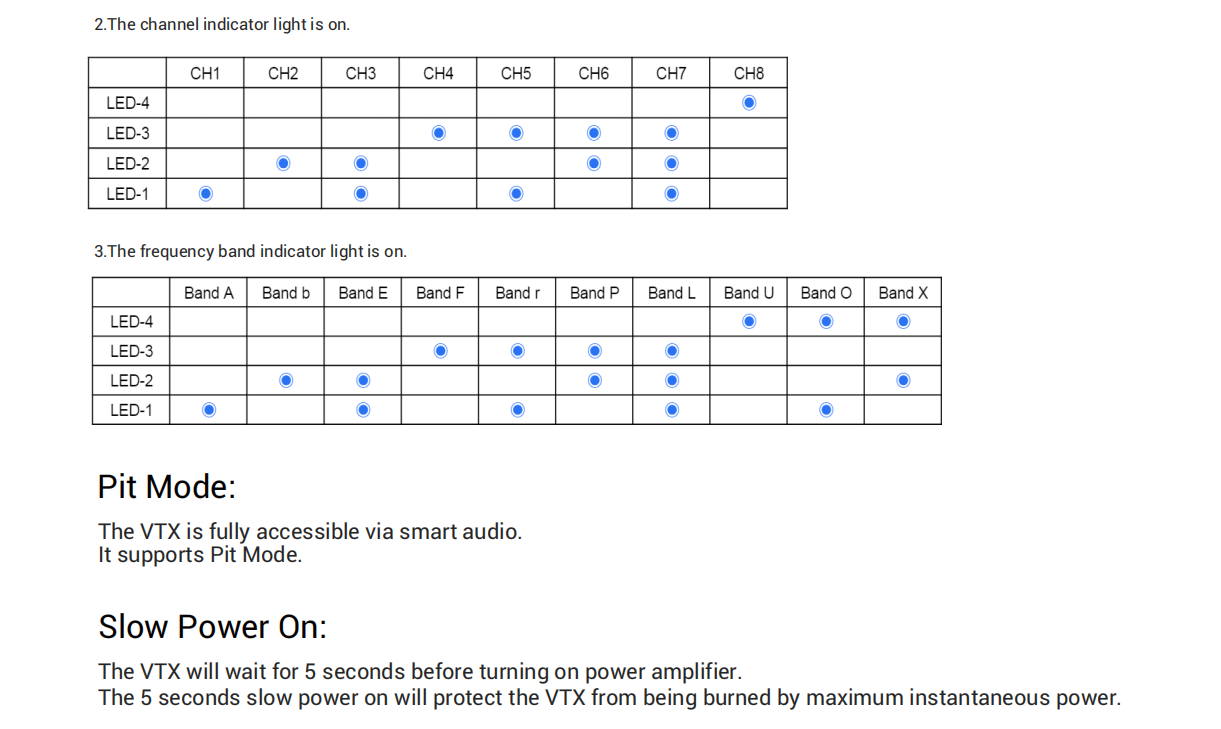

2500mw-vtx-fpv-video-transmitter-module-for-drone (1).png2500mw-vtx-fpv-video-transmitter-module-for-drone (2).png2500mw-vtx-fpv-video-transmitter-module-for-drone (3).png2500mw-vtx-fpv-video-transmitter-module-for-drone (4).png2500mw-vtx-fpv-video-transmitter-module-for-drone (5).png





FAQ About FPV VTX & Wireless Video Transmitters

Approximately how far is the transmission range of this 2.5W video transmitter?

Stable transmission range 3-5km in open areas, works well in suburban and slightly sheltered environments.

How many channels are built-in, and is it compatible with universal receivers?

Built-in 80 full 5.8G channels, fully compatible with all mainstream FPV analog receivers with fast frequency search.

Does it generate a significant amount of heat during normal flight?

Moderate power consumption with good heat dissipation, low heat generation, stable for long-time daily flight.

How is its anti-interference capability?

Moderate power consumption with good heat dissipation, low heat generation, stable for long-time daily flight.

Does it support power level adjustment?

Support multi-power level adjustment, balance flight endurance and transmission distance for different scenarios.

What customized services can you provide?

We support full ODM/OEM customization, including band fine-tuning, power level setting, channel arrangement, logo printing and interface customization for project-based solutions.
