Analog vs Digital FPV Camera: Pros and Cons for Long-Range UAV Missions
Long-range UAV patrol, mountain inspection, forest fire monitoring, fixed-wing cruise, and coastline surveillance require astable, low-latency FPV video transmission link that works reliably in complex terrain. When designing industrial drone projects or upgrading FPV systems, developers and buyers always face a core selection dilemma: analog FPV camera or digital FPV camera. Digital FPV systems deliver ultra-clear pixel images under ideal line-of-sight conditions, while analog FPV cameras occupy an irreplaceable dominant position in long-distance, obstacle-blocked, and all-weather industrial drone missions. This article comprehensively compares the range gap, working principles, field judgment standards, product matching schemes, scenario adaptability, professional testing methods, and procurement & OEM customization guidelines of analog and digital FPV cameras, helping you select the most suitable FPV camera for long-range UAV projects.
Quick Navigation
Real Range Gap Between Analog and Digital FPV Systems
The biggest difference between analog and digital FPV systems in long-range UAV missions lies in effective transmission distance and terrain tolerance. Under the same VTX power, antenna configuration, and flight environment, the two systems show completely different performance in open areas and blocked terrains.
1. Digital FPV Distance Limitations
Digital FPV relies on encoded and decoded digital signal transmission, featuring high image fidelity but poor diffraction performance. The signal is extremely sensitive to terrain occlusion such as tree lines, hillsides, and valley barriers. In long-range missions, once the flight route deviates from the line-of-sight range, the video will experience frame freezing, screen blurring, signal disconnection, and even black screen failure. It is only suitable for short-range, completely open, and unobstructed drone flights.
2. Analog FPV Long-Range Advantages
High-quality analog FPV cameras match perfectly with long-range drone VTX transmitters. They adopt continuous analog radio wave transmission with gradual signal attenuation. Even in semi-blocked forest edges, rolling hills, and low-altitude valley routes, the video image will only generate slight noise instead of complete disconnection. This ensures continuous and usable video feedback for long-distance inspection missions.
3. Field Performance Contrast
Open flat areas show similar transmission performance for both systems; hilly and forest routes make analog FPV far more stable; low-altitude long-distance patrols completely expose the distance and stability shortcomings of digital FPV.
Root Cause Logic: Why Long-Range UAVs Prefer Analog FPV
1. Signal Transmission Mechanism
Analog FPV systems transmit real-time continuous video signals without digital encoding and decoding links, achieving near-zero latency FPV transmission. Digital FPV requires data compression, encoding, wireless transmission, and terminal decoding, bringing inherent fixed delay. For dynamic flight scenarios such as slope turning, terrain obstacle avoidance, and long-distance route correction, digital delay will affect flight control accuracy.
2. Anti-Interference and Obstacle Tolerance
Analog FPV features gradual signal attenuation. When encountering vegetation shielding, fog attenuation, or terrain occlusion, the image quality decreases gently, and the video remains usable for mission execution. Digital FPV has a strict signal threshold; once the signal strength drops below the standard value, the system will directly freeze frames or black out, resulting in mission interruption.
3. Environmental Adaptability
Industrial long-range drone missions often face harsh environments such as damp forests, foggy mountains, and low-light nights. Starlight low light analog FPV cameras can adapt to ultra-low illumination conditions, maintaining clear video output in dusk, night, and foggy days, while digital cameras are more prone to noise and frame loss in complex light environments.
Field Judgment Method: Quick Selection Standards
Engineers and project purchasers can quickly determine the required FPV camera type through four core field judgment standards:
- Terrain judgment: Forest patrol, hilly routes, valley monitoring, semi-blocked orchards and power corridors → Choose analog FPV camera.
- Distance judgment: Effective operating distance exceeding 2km, long-duration fixed-wing cruise → Prioritize analog FPV.
- Control requirement judgment: Real-time terrain avoidance, dynamic route adjustment, low-altitude precise inspection → Zero-latency analog solution is mandatory.
- Environment judgment: Night patrol, foggy and humid environments, complex variable light conditions → Starlight analog FPV is more stable.
FlyMind Product Matching Solution
To solve the matching pain points of different long-range UAV missions and complex terrain environments, FlyMind independently develops and manufactures a full lineup of industrial-grade analog FPV cameras. Different from ordinary consumer FPV cameras, our products focus on long-distance transmission stability, ultra-low-light imaging performance, and strong environmental adaptability, perfectly compatible with 10W/16W/25W long-range drone VTX transmitters. We have built a hierarchical product system covering entry-level conventional patrol, starlight night inspection, large-sensor ultra-clear monitoring, and professional thermal imaging detection, achieving one-to-one accurate matching for short, medium, and ultra-long-range industrial UAV inspection scenarios.
1200TVL 1/4.3” CMOS Entry FPV Camera: Equipped with high-quality 1/4.3-inch CMOS sensor and 1200TVL high horizontal resolution, this entry-level model delivers stable and clear basic imaging performance. It features low power consumption, lightweight design, and strong shock resistance, fully meeting the basic video transmission demands of drone daily training, short-range routine patrols, and field function testing. It is the most cost-effective analog FPV camera for beginner teams and conventional low-intensity UAV missions.
- 1800TVL 1/2.9” Starlight Low-Light FPV Camera: Upgraded with 1/2.9-inch high-sensitivity CMOS sensor, 1800TVL ultra-high resolution and F1.0 super-large aperture, supporting ultra-low illumination imaging down to 0.000001Lux. It effectively solves the problems of dim images, heavy noise and blurred details in dusk, dawn, foggy and hazy environments. With balanced FOV angle and moderate volume, it is perfectly suitable for suburban medium-range inspection, forest edge patrol, and semi-obstructed hilly route missions, being the mainstream starlight analog FPV model for all-day industrial UAV operations.

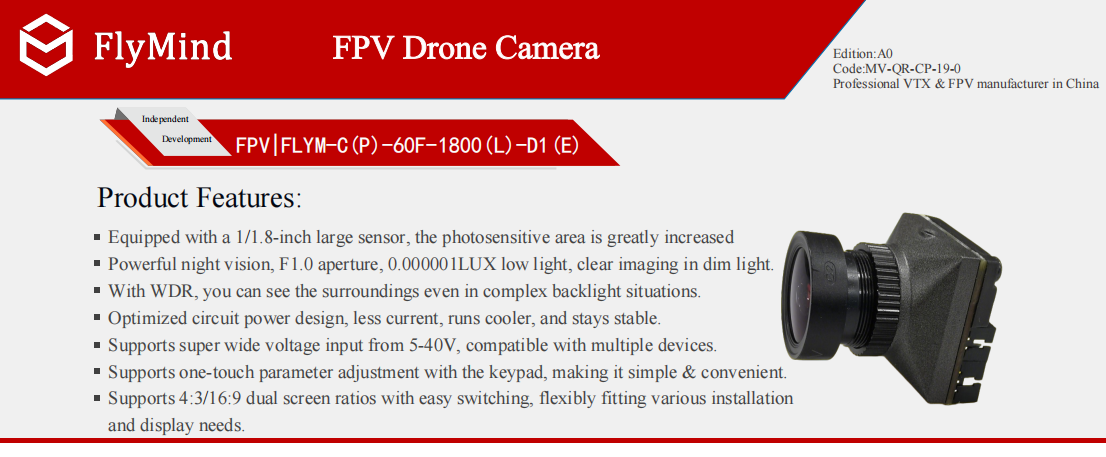

- 1800TVL 1/1.8” Large-Sensor Ultra-Clear FPV Camera: Adopts top-tier 1/1.8-inch super-large target surface CMOS sensor, with greatly improved light intake and dynamic range compared with conventional sensors. The upgraded imaging algorithm suppresses overexposure and shadow dead pixels effectively, delivering ultra-clear and high-contrast video images. It supports stable imaging in extreme low-light, strong light contrast and complex terrain occlusion scenarios, being the preferred high-end model for full-night forest patrol, long-distance mountain cruise, and high-standard all-weather industrial inspection missions.
- UAV Thermal FPV Camera Module:Professional industrial thermal imaging FPV module with 640×512 effective pixels and 50fps high frame rate, ensuring smooth and real-time thermal video transmission. It supports multiple mainstream interfaces including CVBS, USB and MIPI, with optional 4.1mm/9.1mm/13mm/19mm/25mm multi-specification focal lengths and adjustable F1.0-F1.2 large aperture. Adaptable to all-weather, full-light limit missions such as forest fire hazard detection, mountain hidden danger inspection, night emergency search and rescue, and equipment thermal anomaly monitoring, it fills the imaging gap of visible-light cameras in zero-light and hidden detection scenarios.
Scenario Fit Analysis
1.Best Application Scenarios for Analog FPV Camera
Long-range fixed-wing cruise, mountain ridge and valley patrol, forest fire prevention and night surveillance, orchard and power line inspection, coastline monitoring, industrial UAV long-duration field missions, and semi-blocked complex terrain operations.
2.Best Application Scenarios for Digital FPV Camera
Short-range racing drone flight, indoor FPV freestyle, urban close-range aerial photography, and fully open line-of-sight short-distance shooting missions with no latency requirements.
3.Standard Field Test Method for Long-Range FPV Cameras
- Open-area baseline test:Record flight distance, altitude, input voltage, channel parameters, and basic image quality to confirm baseline performance.
- Obstacle occlusion test: Simulate tree line shielding and hillside shadow occlusion to verify signal stability under terrain interference.
- Low-light and bad weather test: Complete dusk, night, and foggy environment tests to verify low-light imaging performance.
- Long-duration stability test: Simulate full mission duration to test module heat dissipation and anti-vibration performance.
- Full-link matching test: Cooperate with 10W/16W/25W long-range VTX to complete adaptive matching verification.
To verify the actual stability of FPV cameras in long-range missions, FlyMind summarizes a complete set of industrial field test standards, applicable to all analog FPV camera verification:
Procurement & OEM/ODM Customization Guide
For long-range UAV project procurement and batch customization, core parameters including TVL resolution, sensor size, FOV viewing angle, low-lux level, and interface type need to be confirmed first. FlyMind provides one-stop FPV camera OEM/ODM customization services for global drone brands, distributors, and project integrators. Customizable items cover lens, CMOS sensor, housing, cable, connector, input voltage, LOGO printing, and personalized packaging, supporting small-batch trial orders and large-scale mass production.
Frequently Asked Questions (FAQ)
Is analog FPV better than digital for long range drone missions?
Yes. Analog FPV cameras feature near-zero latency, strong diffraction, and gradual signal attenuation, maintaining stable video output in blocked and long-distance scenarios, which is far more reliable than digital FPV for industrial long-range UAV tasks.
Why do industrial inspection drones still use analog FPV cameras?
Industrial drones prioritize stability and real-time performance. Analog FPV avoids digital frame freezing and black screen failures, adapting to complex forest and hilly terrain, making it the mainstream choice for professional inspection UAVs.
Does low-light performance matter for long-range drone inspection?
Absolutely. Most forest and mountain patrols involve dusk, night, and foggy environments. Starlight low light FPV cameras ensure clear imaging in ultra-low illumination, directly determining mission success.
Which FPV system is more stable in forest and hill terrain?
Analog FPV systems have better terrain diffraction and anti-occlusion capabilities, while digital FPV is extremely sensitive to vegetation and terrain shielding, prone to signal collapse.
Can FlyMind customize FPV camera modules for special UAV projects?
Yes. FlyMind supports full-scale OEM/ODM customization of FPV camera modules, including hardware parameters, structural accessories, and brand packaging, to meet personalized project needs.
What VTX power matches 1800TVL starlight analog FPV cameras?
It can be perfectly matched with 10W, 16W, and 25W long-range VTX transmitters, adapting to short, medium, and ultra-long distance industrial inspection missions.
Conclusion
Digital FPV cameras excel in short-range, open-space high-definition aerial photography, but they cannot meet the stability and real-time requirements of long-range complex terrain UAV missions. For forest patrol, mountain inspection, coastline monitoring, and fixed-wing cruise projects, high-performance analog FPV cameras are still the most cost-effective and reliable solution. As a professional industrial UAV FPV camera supplier, FlyMind provides full-series starlight low-light analog FPV cameras and thermal imaging camera modules, supporting batch sales and personalized OEM/ODM customization to meet diverse long-range drone project demands.
