Analog VTX in Crowded RF Areas: Reduce Snow Screen

Snow screen in city routes, industrial parks, campus patrol areas, and multi-drone fields is rarely a random failure. In most cases, the image becomes unstable because the RF environment is crowded, the channel plan is too loose, or the receiver is not locked to the correct frequency.

Therefore, reducing FPV snow starts with channel discipline, frequency confirmation, antenna placement, receiver position, and a repeatable field test order. A stable analog VTX setup should be planned around the real RF environment, not only around output power.

Why Crowded RF Creates Snow Screen

In drone FPV work, snow screen is often treated as a weak-signal problem. However, in a crowded RF environment, that assumption can lead to the wrong product choice. A stronger transmitter may improve margin, but it cannot fix overlapping channels, wrong receiver frequency, poor antenna placement, or dirty power.

Therefore, this article avoids a broad analog-versus-digital comparison. Instead, it focuses on practical RF planning for analog video links in difficult spaces. The key questions are simple: which channel is clean, which frequency is actually in use, which aircraft causes interference, and which test step reveals the real cause before flight.

In city routes and industrial parks, the receiver often works in a high-noise environment. Nearby wireless cameras, WiFi equipment, handheld radios, security systems, metal structures, and other FPV transmitters may all raise the noise floor. As a result, the image may show snow even when the aircraft is still close.

A serious video link plan should focus on predictable control. The goal is not only stronger output. The goal is a readable image during takeoff, route extension, turns, multi-aircraft operation, and return flight.

City, Park, and Multi-Drone Scene Judgment Comes First

First, the flight scene should be defined clearly. A quiet open field and an industrial park do not create the same signal pressure. In open space, the video link mainly fights distance. In a city or park route, the receiver also fights background noise, reflections, nearby wireless systems, and other transmitters.

For example, an aircraft may fly only a short distance inside a warehouse zone, yet the image may become snowy near cranes, metal roofs, wireless cameras, or parked vehicles. Meanwhile, another route may show a clean image at longer distance because the receiver has a clear antenna path and less RF noise.

In multi-drone fields, the issue becomes more direct. Several aircraft may power on at once, and the receiver may see multiple strong signals. As a result, a clean single-aircraft test can become noisy when the full group starts.

Because of that, the selection process should start with the environment. The route map should include ground station position, receiver height, aircraft count, nearby RF sources, major metal surfaces, route turns, and any point where buildings or trees may block line of sight.

Channel Conflict and Frequency Mismatch Are the Main Hidden Causes

Channel conflict is one of the most common causes of FPV snow in crowded RF areas. Two units may show different channel labels, but the real frequency spacing may still be too close. Therefore, channel names should not replace actual frequency confirmation.

Another common issue is receiver auto-scan. Auto-scan may lock onto the strongest nearby signal instead of the intended aircraft. In a multi-drone field, this can make the correct transmitter look faulty, while the real issue is receiver lock error.

Frequency mismatch can also be misleading. Sometimes the receiver still shows a partial image, but the picture remains noisy because the receiver is not tuned exactly to the transmitted frequency. As a result, snow appears even when the aircraft is close.

A cleaner process is to record the exact frequency point for every aircraft, test each link alone, then power on other transmitters one by one. This method separates product issues from field planning issues.



6–7GHz band and channel frequency table for channel spacing, frequency confirmation, and multi-aircraft planning.

View 6–7.2GHz 10W VTX Details

Match 10W and 16W 6–7GHz VTX Options to Crowded RF Routes

For this article, 6–7GHz products should be treated as focused tools for anti-interference, city routes, special-frequency planning, and OEM channel control. They should not be used as a generic answer in every VTX topic. Here, they are relevant because the main problem is crowded RF, channel overlap, and frequency separation.

The 10W 6–7.2GHz option fits controlled city-edge, industrial park, campus, and multi-drone preparation routes where cleaner high-frequency planning matters more than extreme distance. The 16W 6–7GHz option adds more margin when the route becomes larger, the receiver location is less ideal, or RF pressure and distance appear together.

The 25W product line can still be mentioned as a long-distance high-power option, but it should not be the visual focus of this article. The main product direction here should stay with 10W and 16W high-frequency products because they match the search intent more closely.

10W 6–7.2GHz for city-edge and industrial park interference

In a city-edge or industrial park route, the flight distance may be moderate, but the channel environment can be busy. Therefore, the product should provide a cleaner frequency window, stable output, and enough room for channel planning.

The 6-7.2GHz 10W high-frequency VTX is suitable for anti-interference planning, city-edge FPV routes, industrial site testing, and multi-aircraft channel organization.



6–7.2GHz 10W high-frequency transmitter for crowded RF planning, city-edge routes, and special-frequency testing.

View 6–7.2GHz 10W High-Frequency VTX

10W product details for heat, mounting, and repeated testing

A crowded RF route does not only need a suitable frequency range. It also needs stable output during repeated testing, route changes, and warm operation. Therefore, power input, heat dissipation, cable strain relief, and antenna connector protection should be checked during sample validation.

This matters because snow screen can appear after several minutes if the module becomes too hot or the power line drops under load. A good sample test should include warm operation, not only a short startup check.

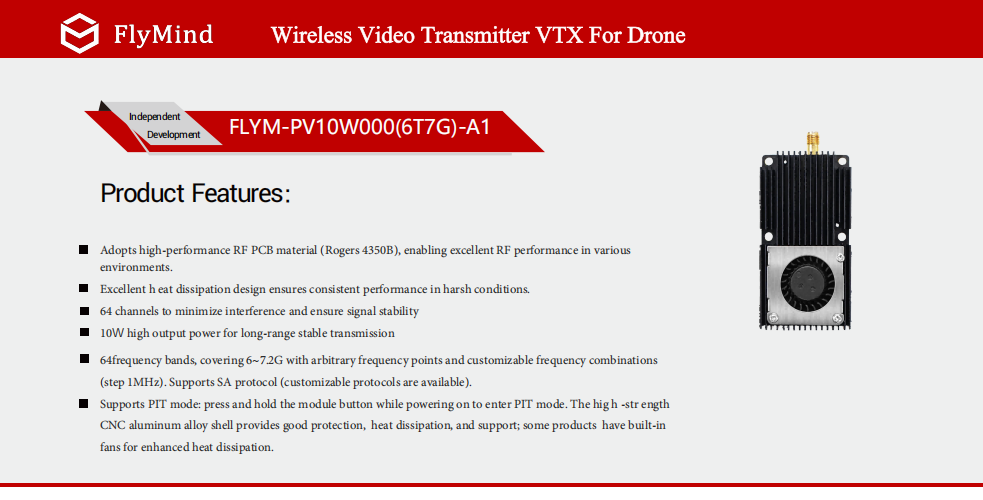

10W 6–7GHz product detail image for heat dissipation, output stability, and installation-oriented review.

Open 10W Product Detail Page

16W 6–7GHz for larger parks, ports, and longer inspection routes

When the route becomes larger, the receiver position is less ideal, or the aircraft needs more reserve during turns, the 16W class becomes more suitable. It gives additional link margin while keeping the article focus on high-frequency anti-interference planning.

The 16W 6-7GHz long distance VTX fits larger industrial parks, port routes, forest-edge areas near buildings, and wider patrol paths where distance and RF pressure appear together.

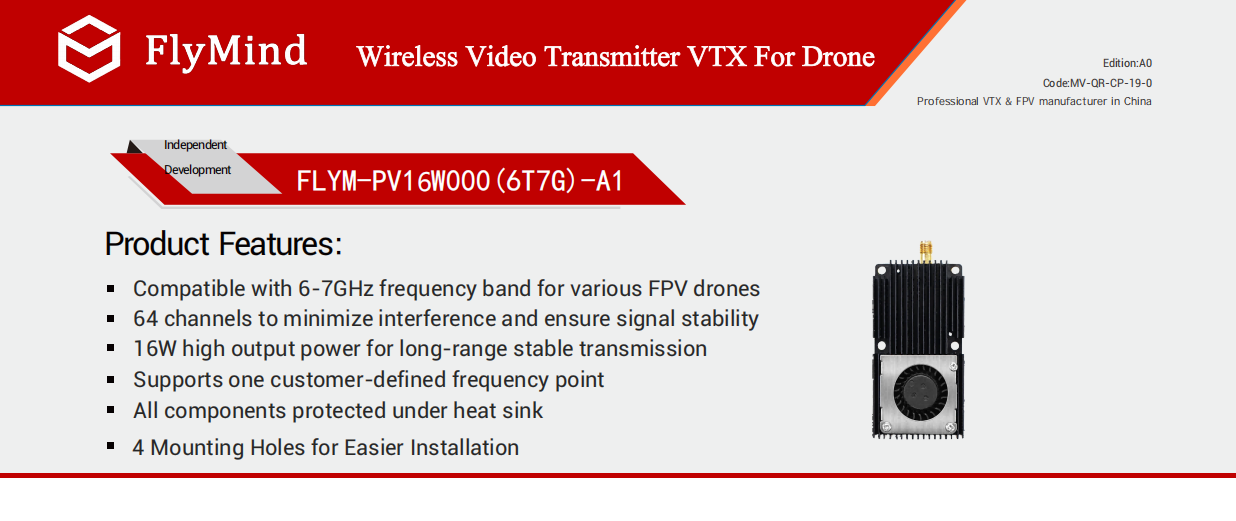

16W 6–7GHz long-distance transmitter for larger routes, stronger link margin, and special RF environments.

View 16W 6–7GHz Long Distance VTX

16W technical details for procurement confirmation

For B2B procurement, the product decision should include more than the power level. Voltage range, connector type, channel range, antenna interface, module size, cooling space, and mounting position all affect real deployment.

Therefore, a technical detail image fits this article better than an unrelated high-power product image. It keeps the visual direction aligned with 6–7GHz anti-interference and special-frequency planning.

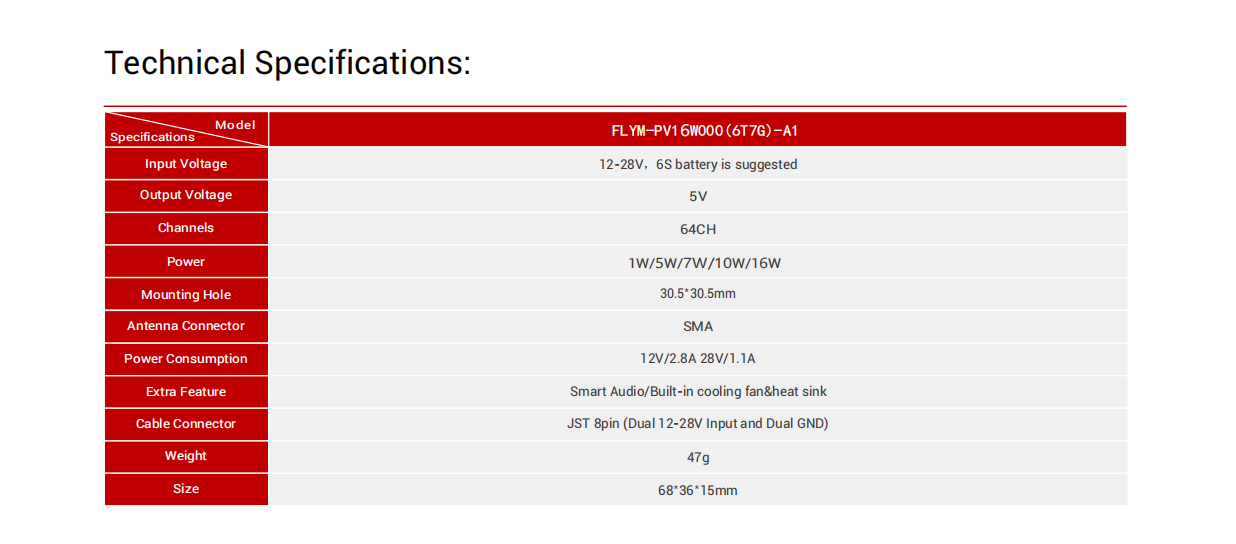

16W 6–7GHz technical specification detail for voltage, power, channel, connector, and mounting confirmation.

Check 16W Technical Details

Installation and Receiver Checks That Decide Stability

Even a well-matched transmitter can perform poorly if the antenna sits in the wrong position. Carbon plates, batteries, landing gear, metal payload frames, and enclosed shells can block or reflect the signal. During turns, this creates short image breaks that look like interference.

At the same time, the receiver side matters. A low ground antenna, a long lossy cable, wrong polarization, or a poor pointing angle can make a strong airborne transmitter look weak. Consequently, every field note should include receiver height, antenna type, cable length, and direction.

Power wiring should also be checked before blaming the RF link. If rolling lines or snow appear during throttle changes, the cause may be electrical noise. In that case, the VTX power path should be separated from ESC and motor wiring, and the grounding path should be reviewed.

Field Test Order Before Flight

Testing order matters because crowded RF problems can hide behind each other. If the test starts with higher output power, the real issue may remain. Instead, the process should move from basic signal chain checks to channel conflict checks and then to full route testing.

First, confirm the camera, receiver, display, video cable, and power adapter. Then, manually set the exact frequency instead of relying only on auto-scan. After that, test one aircraft alone before adding other transmitters.

Finally, move the receiver to the real ground station position. A receiver tested on a table indoors does not represent field performance. Receiver height, antenna direction, and nearby objects can change the image quality significantly.

Related Reading and Product Routing

The following internal links support the article without using the main keyword as a product-page anchor. Product links use power, frequency, and use-case phrases, while the homepage link supports the main topic.

FAQ: Reduce FPV Snow Screen in Crowded RF Areas

Summary and Inquiry Checklist

Crowded RF areas need a methodical link plan. First, define the environment. Next, confirm exact frequency points and channel spacing. Then, test one transmitter at a time before increasing system complexity.

For anti-interference and special-frequency routes, 6–7GHz products should appear as focused solutions. The 10W 6–7.2GHz module fits controlled city and park routes. The 16W 6–7GHz module adds more margin for larger paths. Meanwhile, OEM planning helps make channel logic repeatable across many aircraft.

For a stable analog VTX setup, send the drone type, target distance, flight environment, frequency preference, receiver side, quantity, and whether OEM/ODM support is required.
