In long distance UAV projects, heat is often the hidden reason behind image noise, power drop, unstable output, and field failure. Therefore, choosing a video transmitter is not only about output power. It is also about heat dissipation, airflow, antenna layout, power stability, receiver matching, and long-duration operating reliability.
This article focuses on practical heat judgment for 16W and 25W VTX projects. Meanwhile, 10W and 6 to 7GHz options are mentioned only where they help with controlled testing, special frequency planning, or complex RF environments. The goal is simple: make the product path clearer, reduce field risk, and help the project team know which VTX class should be tested next.
Why Heat Problems Matter in 16W and 25W VTX Projects
At first, a high-power VTX may look stable during a short indoor test. However, real flight creates a different load. The module works under vibration, changing airflow, battery voltage movement, long power-on time, and continuous RF output.
In many field cases, heat-related problems appear slowly. The image may look clean during takeoff, but snow, rolling lines, weak image recovery, or output fluctuation may appear after a longer cruise. As a result, the issue may be reported as weak range, although the real cause is thermal stress.
This is why a high-quality purchasing decision should not start with wattage alone. Instead, it should start with working time, route shape, receiver setup, heat release path, and the actual drone structure. In practical terms, a well-matched 16W unit can be more stable than an oversized module installed in a poor thermal layout.
Therefore, the real question is not only “how much power is needed.” The better question is “which power level can stay stable in this aircraft during this mission.” That is the difference between a short bench success and a reliable field result.
Common Signs of Heat Attenuation in Real Flight
Heat attenuation does not always cause an instant shutdown. Instead, it often starts as a small change in image quality. For example, the route looks stable in the first few minutes, then the image becomes weaker after the module reaches a higher working temperature.
Image becomes worse after several minutes
The first stage looks normal. However, the later stage shows more snow, short breaks, or weaker recovery. This pattern usually points to heat, voltage drop, or antenna stress.
Performance changes with weather
A morning test may look better than an afternoon test. Therefore, ambient temperature should be included in the test record, especially for long-endurance projects.
The same VTX behaves differently after installation
A module on an open bench may run better than one hidden inside a sealed bay. In other words, installation can change reliability even when the product itself is suitable.
Range looks weak only after the system warms up
When the route works at the beginning but weakens later, the real issue may not be pure distance. More often, it comes from thermal loading, blocked airflow, or RF stage stress.
What Usually Causes Heat-Related VTX Problems?
First, blocked airflow is the most direct cause. Foam, tape, plastic covers, carbon plates, and tight cable bundles can reduce heat release. As a result, even a strong module may lose stability inside a poor airframe layout.
Second, power input can make the problem worse. If the cable is weak, the connector is loose, or the VTX shares a noisy power path with heavy-load electronics, output can become unstable during throttle changes or long operation.
Third, antenna mismatch can increase RF stress. A loose SMA connector, wrong-band antenna, or damaged coax cable may create reflected energy. For antenna-side checks, RF teams can also review basic VSWR and return loss principles, because impedance mismatch may reflect power back toward the transmitter and reduce system efficiency.
Finally, receiver weakness can hide behind heat symptoms. A low ground antenna, long lossy cable, wrong polarization, or blocked receiver angle can make a strong airborne transmitter look unstable. For this reason, the complete video link should be evaluated together.
Scene-Based Judgment: Which Power Level Fits the Project?
A useful buying guide should help the reader decide what to test next. The following logic connects route conditions, aircraft structure, and product direction. It is more practical than comparing power figures alone.
| Project scene | Main concern | Recommended direction |
|---|---|---|
| Mid-range route test | Controlled cost, moderate heat load, useful validation | Start with 10W and confirm route behavior first |
| Long-endurance fixed wing | Stable image after warm operation | Choose 16W when balance and runtime matter |
| Large open-area patrol | More signal reserve over distance | Choose 25W when cooling and receiver planning are ready |
| Urban edge or industrial RF field | Frequency pressure, channel crowding, reflection | Use 10W testing or 16W 6 to 7GHz special-band planning |
| OEM or ODM platform | Repeatable installation and batch stability | Define power, frequency, connector, cooling, and antenna layout together |
Product Matching: Choose by Mission, Cooling Space, and Receiver Side
A stable VTX decision should start from the project environment. Distance, route shape, airframe size, cooling space, power budget, and receiving equipment all affect the result. Therefore, the product match below focuses on use case and selection logic rather than parameter stacking.

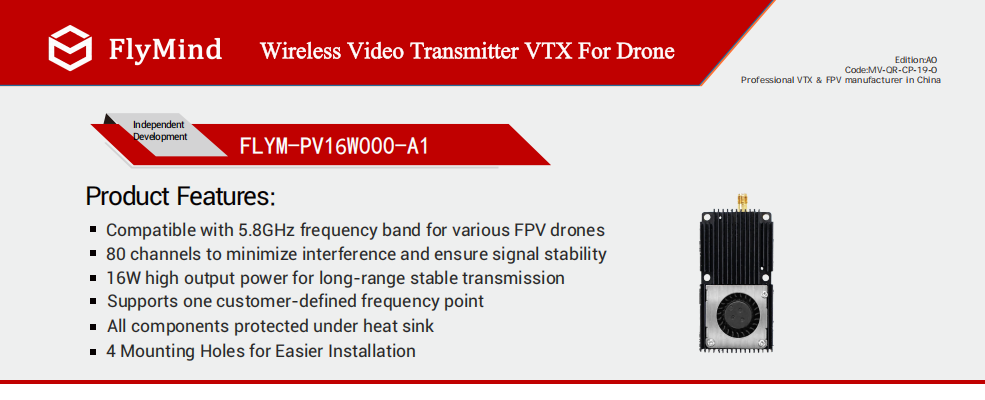

16W 5.8GHz VTX: Balanced Power for Long Operation
For fixed-wing drones, VTOL platforms, mapping aircraft, and inspection UAVs, 16W is often the most balanced choice. It gives stronger signal margin than smaller modules while keeping installation and thermal management more practical than a larger output level.
In practical terms, this power class fits projects that need stable image feedback during long route operation. It is especially suitable when the aircraft has limited internal space and cannot easily support the higher heat load of a more aggressive configuration.
The 5.8GHz 16W low latency VTX is a strong match when the route needs stable image feedback, medium-to-long distance margin, and better heat control than forcing a larger output level into a compact bay.
Best fit: fixed-wing cruising, VTOL inspection, mapping routes, long corridor monitoring, and balanced heat-stable VTX projects.
25W 5.8GHz VTX: More Margin for Open-Area Distance
A 25W VTX is more suitable when the mission needs stronger signal reserve over open terrain. For example, long-distance FPV, large-area patrol, field monitoring, and remote inspection routes may benefit from this level.
However, this is not a “bigger is always better” choice. The aircraft should provide open airflow, stable input power, secure mounting, correct antenna matching, and a receiver side that can use the stronger transmitted signal.
The 25W 5.8GHz long range VTX should be selected as a system solution. It makes sense when the project is already prepared for stronger thermal load and longer open-area missions.
Best fit: large UAV platforms, open-area patrol, long fixed-wing routes, and projects with planned airflow and receiver setup.
10W VTX: Practical for Mid-Range Testing and Controlled Routes
Although this topic focuses on 16W and 25W heat stability, 10W still has a useful role. It supports mid-range testing, training aircraft, smaller platforms, and projects that need more signal margin than low-power modules.
This is also a practical entry point when the route, receiver position, and installation logic are not fully confirmed. In that case, 10W can be used as a sample or evaluation level before moving to a higher power class.
The 5.8GHz 10W 80CH drone VTX is useful for sample validation, moderate route testing, or projects where mid-range image quality is enough and extra heat load is not yet justified.
Best fit: moderate routes, engineering samples, training aircraft, and early field validation before 16W or 25W selection.
16W 6 to 7GHz VTX: Special-Band Planning for RF Pressure
In some urban, industrial, and OEM projects, the real challenge is not only heat or output power. Instead, the route may face crowded RF conditions. Therefore, a 6 to 7GHz option can support special frequency planning when the receiver and antenna package match the band.
This option is not a default replacement for every standard project. Rather, it should be treated as a special frequency tool for anti-interference planning, custom channel needs, or projects where the usual frequency space is too crowded.
The 16W 6-7GHz long distance VTX is best matched to special frequency projects, urban RF testing, and OEM channel planning where receiver compatibility is already defined.
Best fit: special frequency projects, city-edge routes, industrial RF fields, and OEM channel planning.
Installation Choices That Improve Heat Dissipation
Good heat dissipation starts with placement. In a UAV, the VTX should sit where heat can leave the body. Therefore, an open airflow path is usually better than a hidden position inside a sealed equipment bay.
The heat sink should remain exposed. Foam, tape, printed covers, and tight cable routing can block heat release. As a result, the module can run hotter even when the product design itself is suitable for high-power use.
The VTX should also stay away from major heat sources such as batteries, ESCs, power distribution boards, and dense wiring clusters. Heat stacking makes field behavior less predictable, especially in long-endurance aircraft or sealed composite bodies.
Antenna location should be treated as part of the heat and reliability plan. A poor antenna match can stress the RF stage, while a blocked antenna path can make the image look weak even when the transmitter output is strong. This is why thermal planning and RF planning should not be separated.
Receiver-side quality should be checked at the same time. A strong airborne system cannot fully compensate for a weak ground station. Therefore, ground antenna height, polarization, cable loss, and line of sight should all be reviewed before judging only the airborne module.
Heat Stability Test Checklist Before Procurement
A useful test should reflect the real mission. Therefore, a short indoor power-on check is not enough for 16W and 25W projects. Long operation, airflow, wiring, antenna, and receiver conditions should be tested together.
- Define flight duration: Test longer than the expected mission segment, especially for fixed-wing and patrol aircraft.
- Use the planned voltage: Recreate the real battery, cable length, connector, and ground wiring plan.
- Keep the antenna connected: Check the SMA connector, antenna band, coax cable, and mounting position before high-power operation.
- Compare airflow conditions: Test open airflow and blocked airflow to see how the airframe affects heat behavior.
- Record image behavior over time: Note the start image, middle-stage image, final image, module position, receiver setup, and field temperature.
- Repeat after installation: Bench stability does not automatically mean airframe stability. The final UAV build should be tested again before larger quantity purchase.
Procurement Advice: What to Prepare Before Sending an Inquiry
A useful VTX selection guide should also make the next step clear: what information should the buyer prepare before asking for a recommendation?
Before comparing models, define the drone type, expected route, flight time, ground receiver position, frequency preference, and installation space. These details decide whether 10W, 16W, 25W, or a special-band solution is the better path.
In simple terms, if the route is still in validation, start with a moderate level. If the project already needs more stable image reserve and has a practical thermal layout, move to 16W. If the route is long, open, and mission critical, then 25W becomes the logical option.
FAQ: VTX Heat Stability and Selection
Why does a high-power VTX become unstable after long operation?
Usually, the reason is heat accumulation, blocked airflow, weak power input, antenna mismatch, or poor mounting. Heat is more likely when the image starts clean and becomes worse after continuous operation.
Is 25W always better than 16W?
No. A 25W VTX gives more signal margin, but it also needs better airflow, power planning, and installation space. Therefore, 16W can be the better match when balanced weight and easier thermal control matter more.
When should 16W be selected?
A 16W VTX fits long-endurance drones, inspection aircraft, VTOL platforms, and medium-to-large UAVs that need stronger image transmission without excessive thermal pressure.
When does 25W make more sense?
A 25W VTX makes sense for open-area distance, larger UAV platforms, and routes where extra signal reserve is required. However, the aircraft should provide proper cooling space and reliable input power.
Can a 10W VTX be used in heat-sensitive projects?
Yes. A 10W option can support mid-range routes, controlled testing, and smaller aircraft. However, it should not replace 16W or 25W when the main goal is long-distance signal margin.
Why does antenna matching affect heat?
A poor antenna match can reflect RF energy back into the module. As a result, the RF stage may work harder and become hotter. Therefore, the antenna connector, coax cable, and frequency band should match before high-power operation.
Is 6 to 7GHz suitable for every UAV project?
No. A 6 to 7GHz VTX is more suitable for special frequency planning, anti-interference needs, urban RF conditions, or OEM channel requirements. Receiver compatibility and antenna selection should be checked first.
Summary and Inquiry Checklist
In summary, heat stability is a system result. Output power matters, but airflow, wiring, antenna layout, receiver setup, mounting position, and long-operation testing decide whether the image stays stable in real flight.
For a stable FlyMind video transmitter project, send the drone type, target distance, flight environment, frequency preference, receiver setup, quantity plan, and OEM or ODM needs. These details help match 10W, 16W, 25W, or special-band solutions more accurately.
Three action steps
- First, record the exact symptom: image noise, power drop, heat rise, short breaks, or long-duration instability.
- Second, check the complete link: power input, ground, antenna position, receiver height, cooling, and channel match.
- Finally, choose the power class: 10W for controlled routes, 16W for balanced long operation, and 25W for serious long-distance work.
