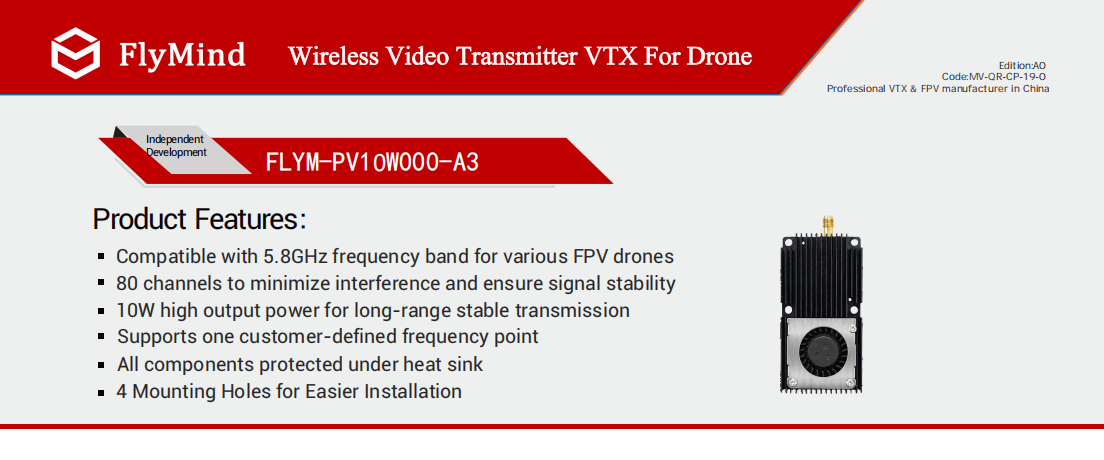

Flymind 5.8 GHz 10W VTX 80 Ch Video Transmitter for Drones
FAQ About FPV VTX & Wireless Video Transmitters
What is the transmission range of this 10W video transmitter?
It can reach 6-9km stable transmission in open areas, strong signal penetration, stable flight in suburbs and woodland environments.
How many channels are included as standard? Is the compatibility good?
Built-in 80 standard 5.8G channels, fully compatible with all mainstream FPV analog receivers, fast frequency matching.
What is the most distinctive feature of this model?

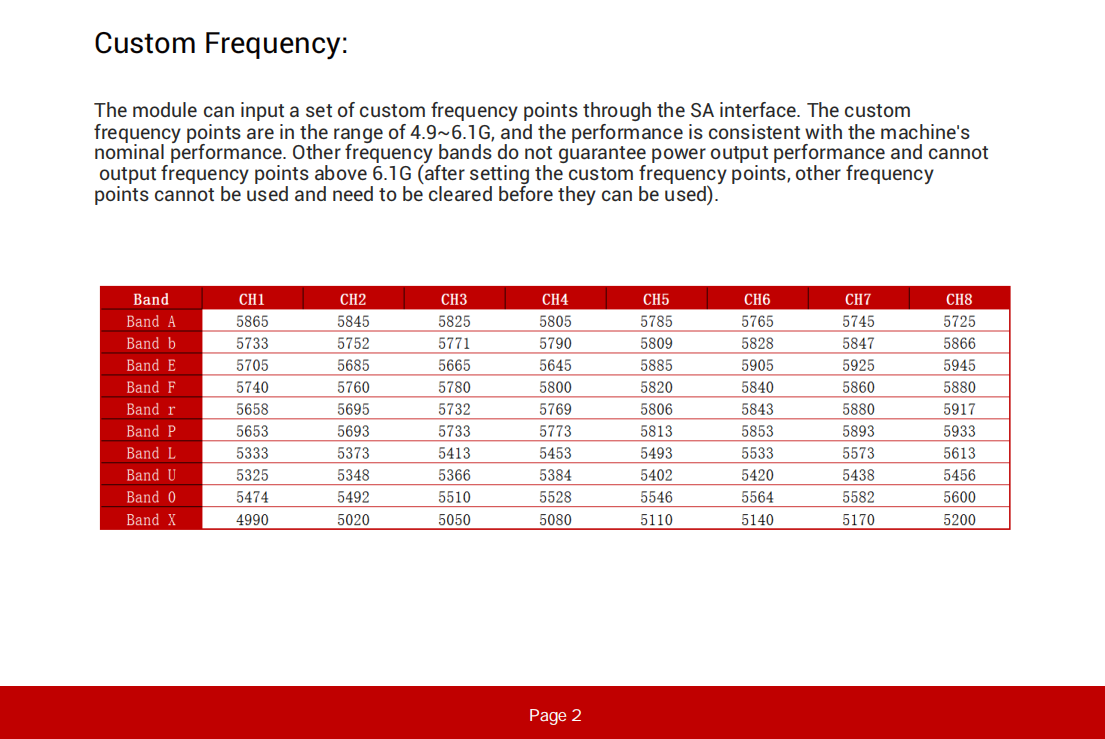

The module allows for the input of a set of custom-configured frequency points via the SA interface. These custom frequencies fall within the 4.9–6.1 GHz range, and their performance aligns with the device's nominal specifications. Power output performance is not guaranteed for other frequency bands, nor is it possible to output frequencies exceeding 6.1 GHz.

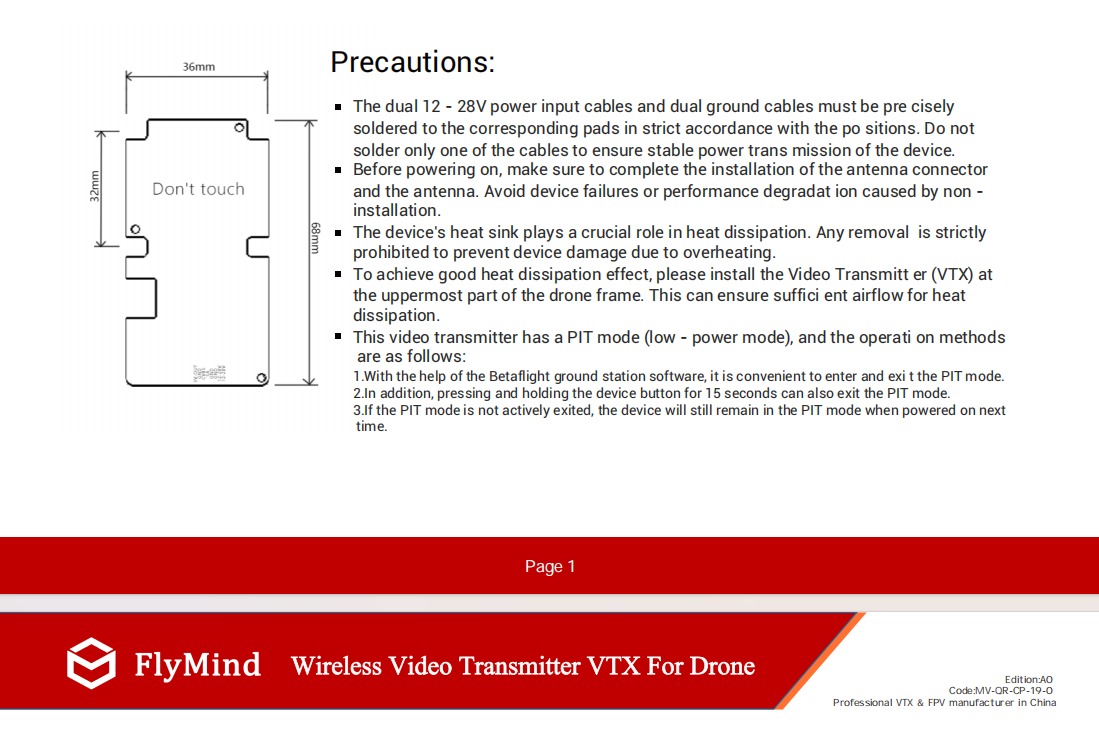

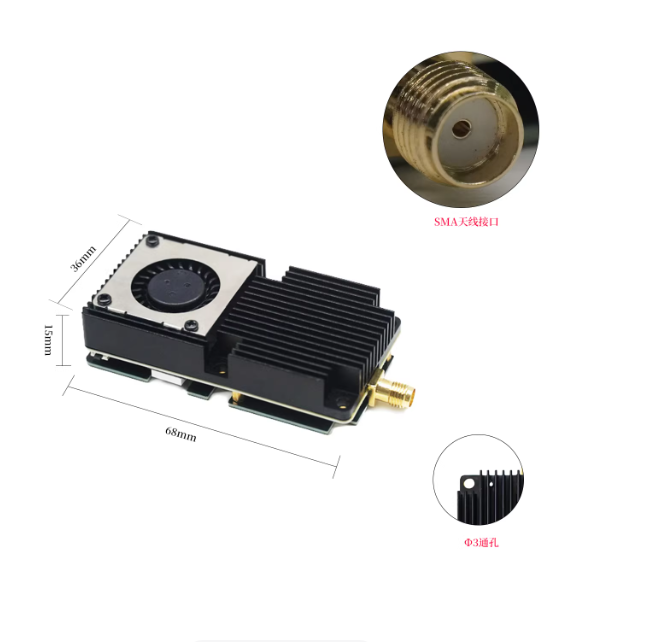

Is the heat dissipation stable during prolonged, high-power operation?
Equipped with high-efficiency heat dissipation structure, stable heat dissipation under 10W constant power, no power drop during long-distance flight.
How does analog video transmission perform in terms of latency?
Pure analog ultra-low latency transmission, real-time video output, sensitive control for long-range inspection and aerial survey.
What customized services can you provide?
We support full ODM/OEM customization, including band fine-tuning, power level setting, channel arrangement, logo printing and interface customization for project-based solutions.
