FAQ About FPV Camera for Racing Drone
What kind of camera is this? Can it work with drone thermal imaging cameras?

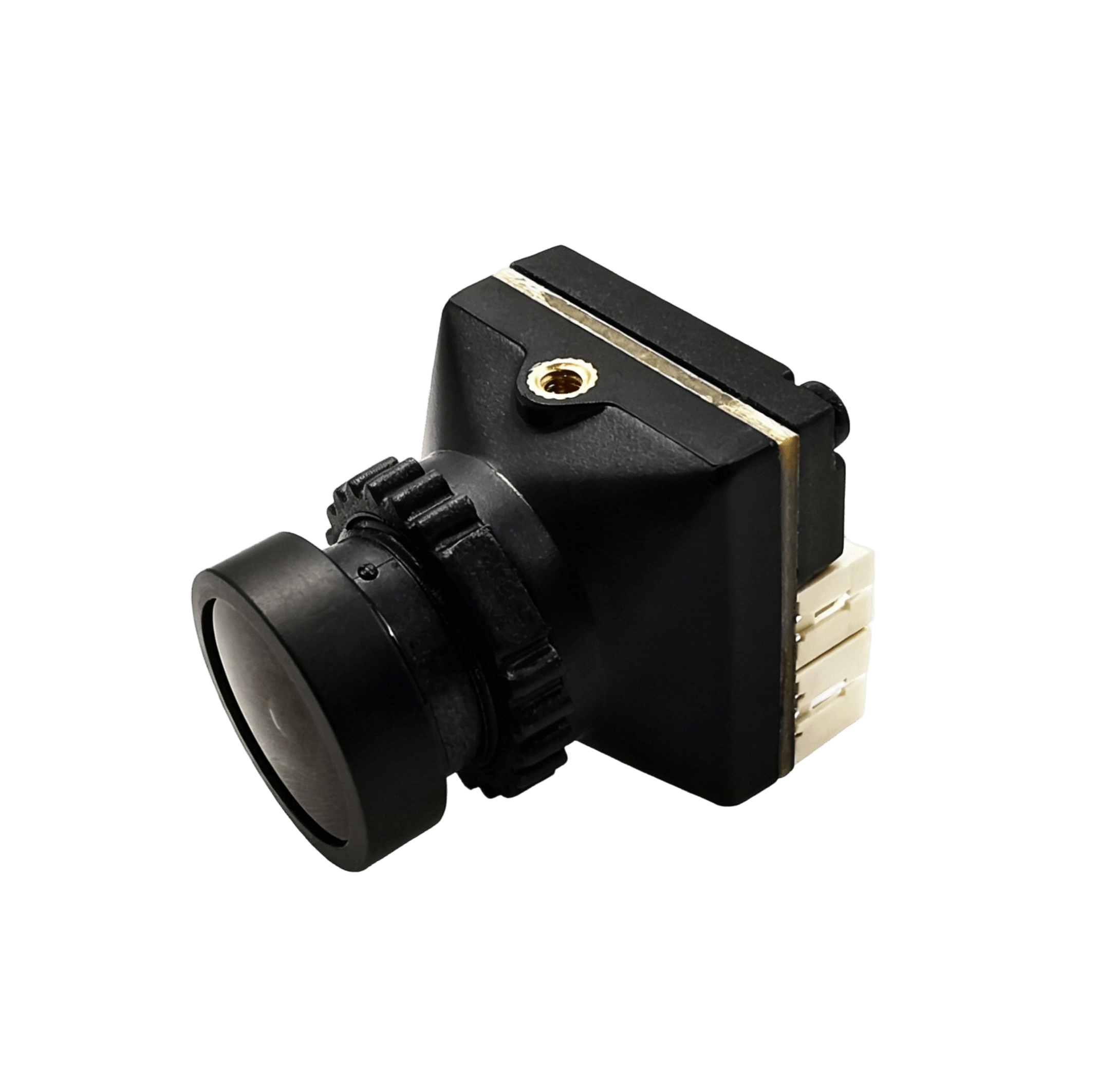

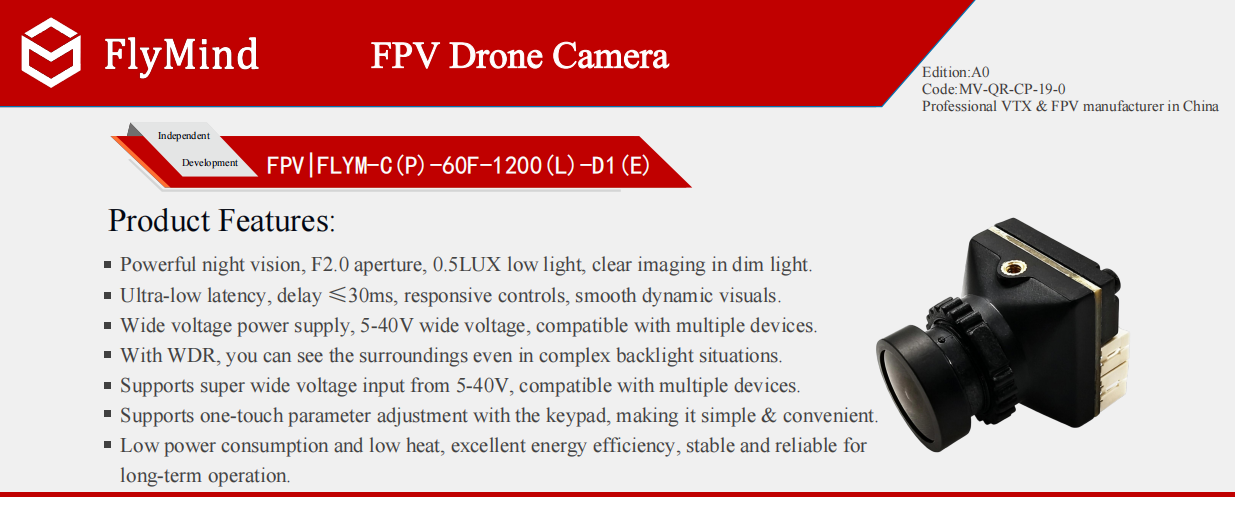

This is an entry-level analog FPV camera from FlyMind, equipped with standard CVBS analog video output. It features great universal compatibility. It works well with various entry-level racing drones and small aerial drones, and can be perfectly matched with mainstream drone thermal imaging cameras. It is widely used for beginner flight, outdoor inspection, low-altitude detection, night security and other scenarios, an ideal accessory for novice players and small operating devices.
What sensor does this camera use? How about its image resolution?

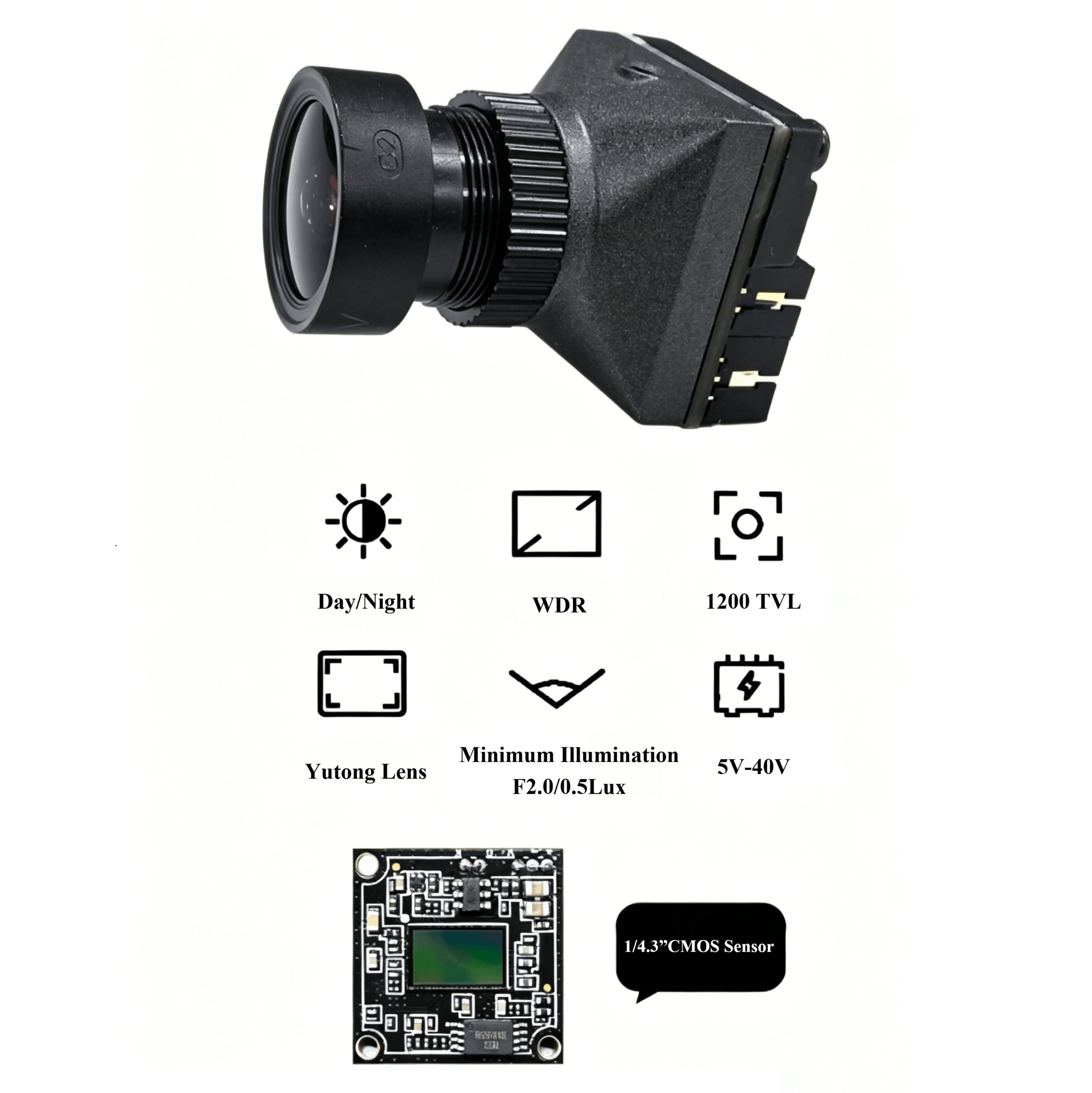

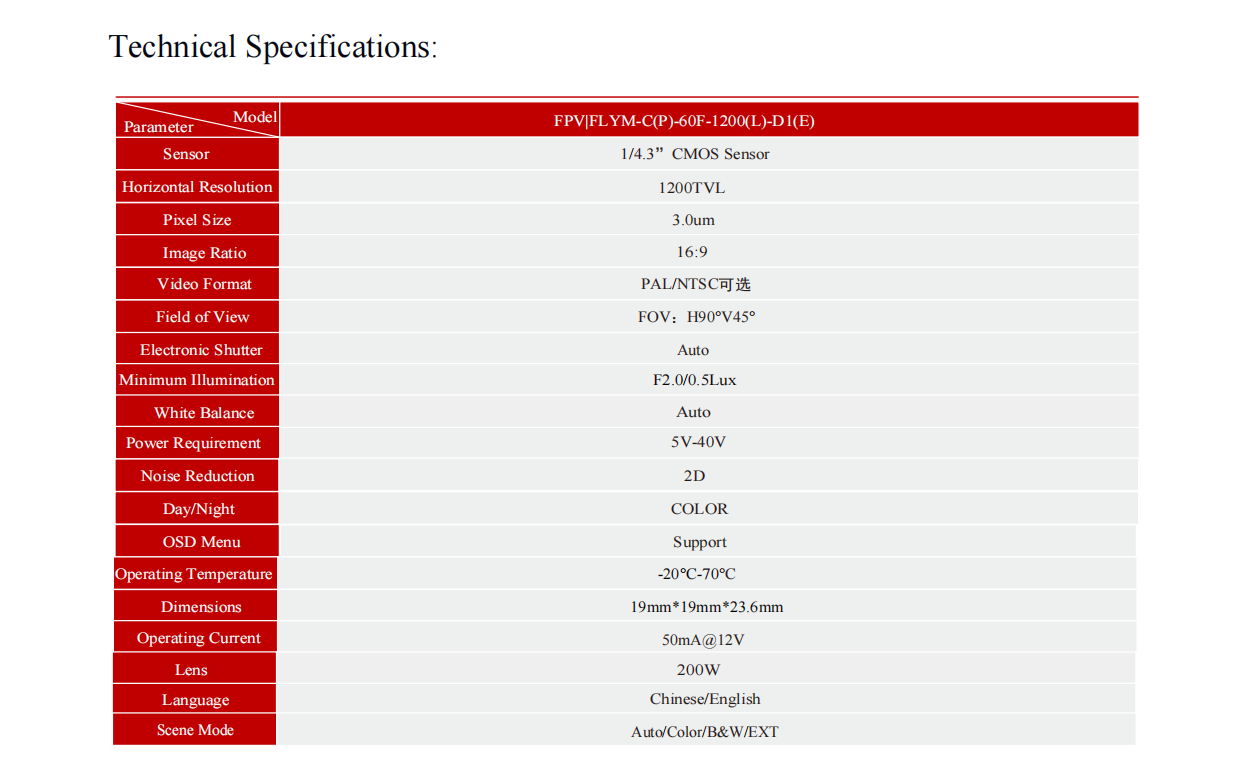

Adopting a 1/4.3-inch CMOS image sensor with 3.0um pixel size, it delivers 1200TVL horizontal resolution. Matched with a 200W pixel lens, it presents clear details and natural color reproduction. It outputs stable and high-quality images for daily FPV flight and inspection work with drone thermal imaging cameras.
What video formats does it support? What is the default image aspect ratio?
It supports PAL and NTSC dual video formats for free switching, compatible with FPV video transmitters, flight goggles and monitors worldwide. The default image ratio is 16:9, which is highly compatible with display terminals of infrared thermal imaging cameras and regular monitors.
How is the night vision performance of this entry-level camera? Can it work normally in low-light environments?
Equipped with F2.0 aperture lens, the minimum illumination reaches 0.5Lux, delivering excellent imaging performance in low light. It captures clear images at dusk, in corridors and dim outdoor areas, meeting the needs of basic night flight. It is also suitable for devices equipped with drone thermal imaging cameras to operate in low-light conditions.
Will the image be overexposed under backlight or strong light? Does it have noise reduction function?
Built-in WDR (Wide Dynamic Range) technology, it intelligently balances light and shadow to avoid overexposure and dark shadows caused by backlight and strong light. With 2D digital noise reduction technology, it effectively reduces static noise for purer images. It performs stably when paired with drone thermal imaging cameras.
What is the exact latency? Is the image smooth during high-speed flight?
The image latency is ≤30ms with fast signal transmission. The control is responsive without lag. The image stays coherent and flicker-free during high-speed flight and dynamic tracking, fully meeting the requirements of entry-level racing drones and thermal imaging drones for dynamic monitoring.
What is the field of view, size and weight? Is installation difficult?

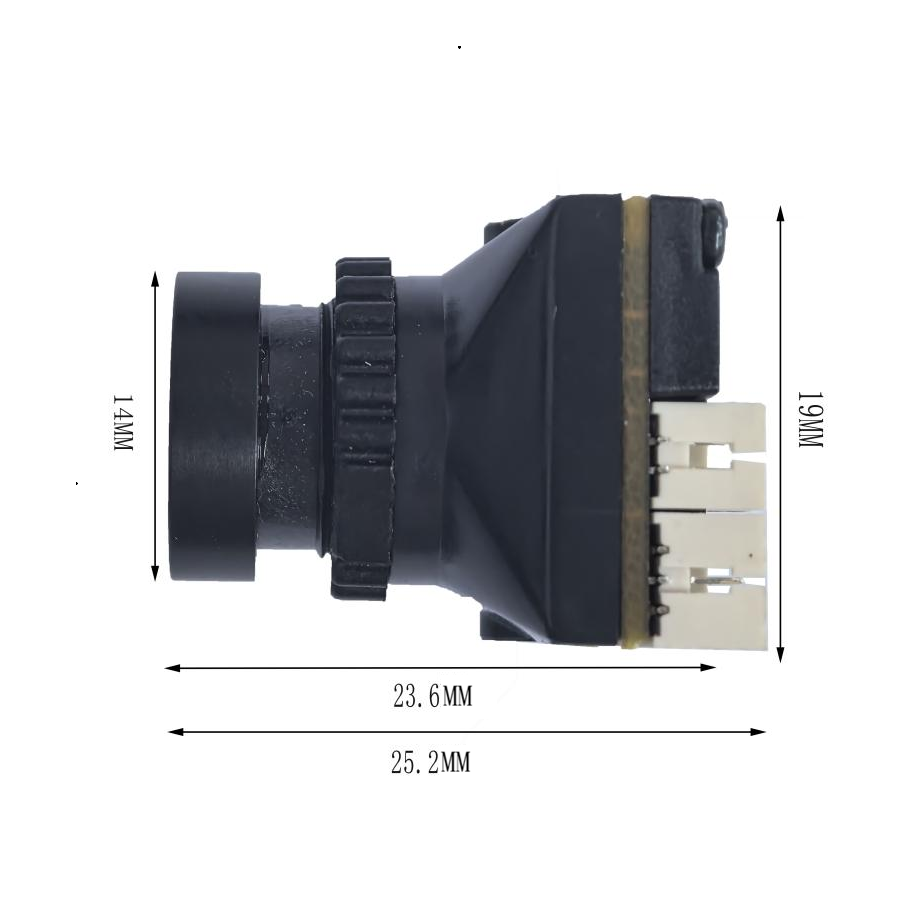

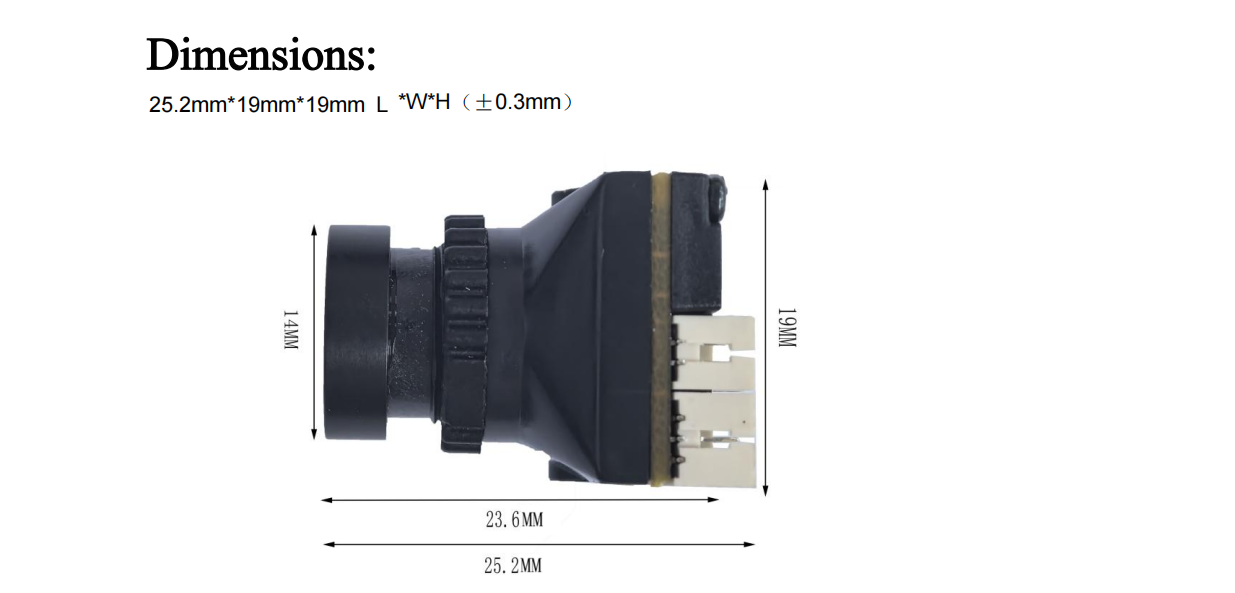

The field of view is 90° horizontal and 45° vertical, with moderate viewing angle and low distortion. The compact body is 19mm×19mm×23.6mm and weighs only 6.9g. The lightweight design will not increase drone load, and it is easy to install on small racing drones and lightweight drones equipped with infrared thermal imaging cameras.
